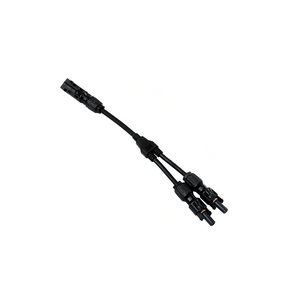

4MM BRANCH CONNECTOR
-
2 Year Warranty
-
30 Day Money Back
-
US-Based Customer Support
California residents: WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
Highlights
Video
Use Cases
Recharging
Reviews
4MM BRANCH CONNECTORS COMPATIBILITY
- Solar Panels: Boulder 100i, Flex 100i and other Goal Zero solar panels with MC4 connections.
- Yeti Power Stations(MC4 to HPP adapter also required)
Yeti 1000C, 1000X, 1500X, 3000X, 6000X, Yeti PRO 4000, and any other Yeti Power Station with HPP solar input.
When would I need to use a Solar Branch Connector?
- When assembling a larger solar panel system (4+ panels) using Boulder 100i, Flex 100i, or other Goal Zero solar panels with MC4 connections
- When connecting solar panels with MC4 connections to Yeti X-line power stations. Chain two panels together in series using the attached cables. Then chain in parallel using a solar branch connector.
- When connecting solar panels with MC4 connections to Yeti PRO 4000 power stations. Chain up to five panels together in series using the attached cables. Then chain in parallel using a solar branch connector.
Example setup using eight Boulder 100i solar panels (800 watts of solar):
- Chain two Boulder 100i panels in series using the cables attached to the solar panels (create four of these two panel sets)
- Connect each of the two panel sets to the 4-1 Solar Branch Connector. Plug the positive connector from each set into the respective positive connector of the 4-1 Solar Branch Connector. Repeat for each of the negative connectors.
- Connect the positive and negative connectors from the 4-1 Solar Branch Connector to the MC4 to HPP adapter.
- Plug the HPP end of the MC4 to HPP adapter into the HPP input on a Yeti Power Station.
NOTE: Each set of panels connected in series should have the same number of panels and be the same model.
PRODUCT DETAILS
- Guage: 12 AWG on the two, 10 AWG on the one
- Max input current: 20 A
- Max output current: 30 A
- Max input Voltage: 1000 V
- Max output Voltage: 1000 V
- 2-1 4mm branch Connector SKU: 98795
- 3-1 4mm branch Connector SKU: 98800
- 4-1 4mm branch Connector SKU: 98805
